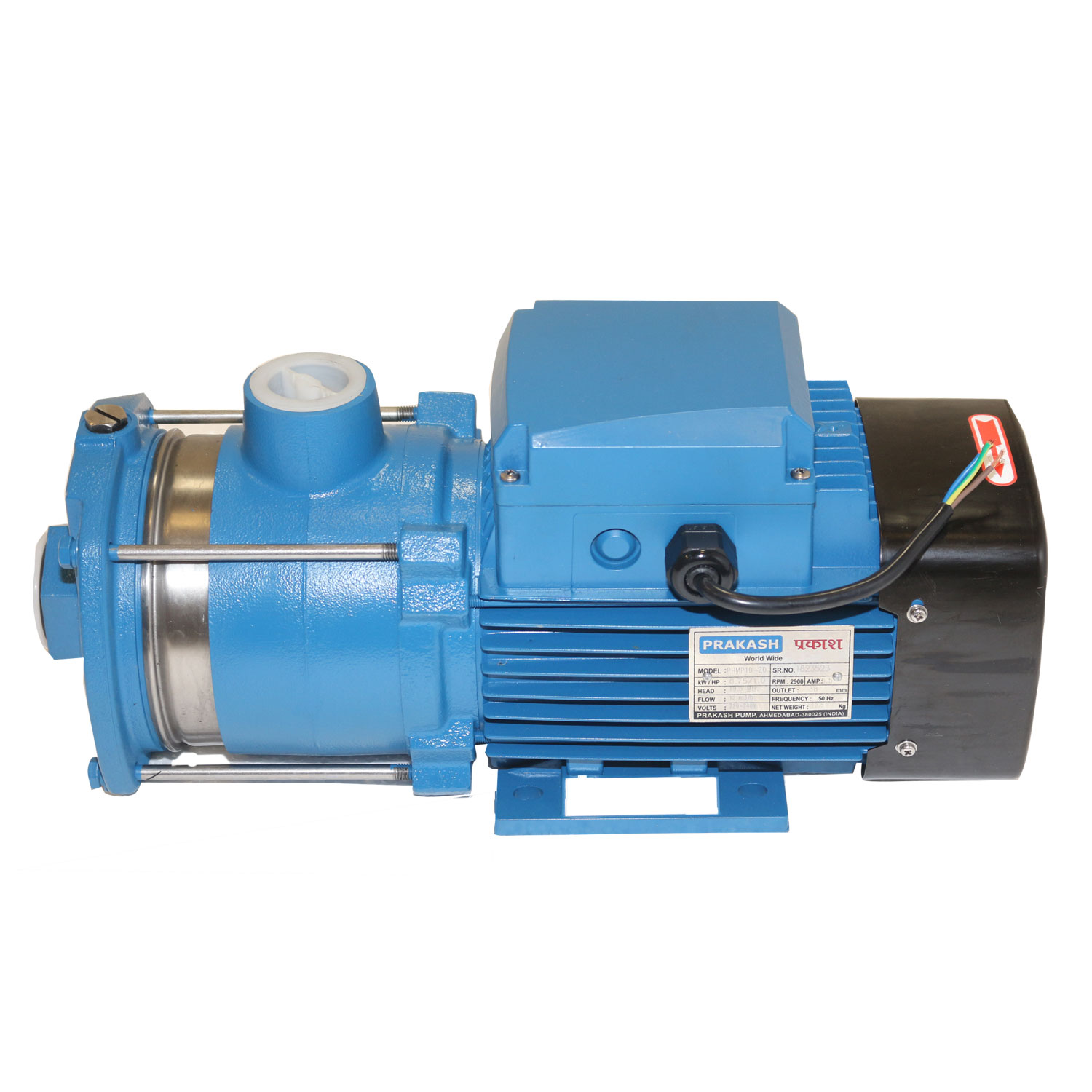

PRAKASH 1.0 HP HORIZONTAL MULTISTAGE PUMP PHMP10-20

  Download Brochure

Prakash Pump manufactures and supplies technologically advanced Asia’s number one Horizontal Multistage Stainless Steel Pump comes with a Built-in thermal protector for single phase motor with Insulation Class F and Protection class IP44,Which offering reliable protection for motors in case of overload or phase failure.

It is specially designed for fresh water pumping and handling, where contamination to the pumping water is undesired and available in Compact and smart design.

Horizontal Multistage Stainless Steel Pump that incorporates a variety of models with different dimensions, power and flow rate, such as PHMP2-30, PHMP2-50, PHMP2-60, PHMP4-60 with maximum pressure of 117 LPM and speed of 2900 rpm.

This Pump is used where you require a maximum working pressure with Mano-metric Suction Lift Up to 8m, Liquid Temperature between -10°C to +105°C, Ambient Temperature Up to +40°C.

Prakash Horizontal Multistage Stainless Steel Pump: Top Features

• A Built in thermal protector is a main attractive feature of this pump to protect the motor in unfavourable conditions such as overload and phase failure.
• Most importantly it’s all of wetted or hydraulic parts are made of 304 stainless steel, so protection from contamination to pumping water.
• Provides High pressure, Long life, power saving, easy to access and No maintenance.
• Pipeline Pressurization is one of the most attractive features of the Horizontal Multistage Stainless Steel Pump.
• Simple and automatic control.
• Ideal for every sector applications like domestic water supply, industrial and Vegetable Greenhouse watering, Fish farming and poultry raising.
• Easy Installation and Servicing.
• High efficiency, reliable and cost effective.
• A multistage that makes high pressures possible.

Specifications:

A] Technical Specifications:

• Max. Flow: 200 LPM
• Max. Head: 19.5m

• Speed: 2900 rpm
• Power: 0.75Kw / 1HP

• Inlet/Outlet : 1.5″x1.25″

B] Operating range:

• Mano-metric Suction Lift Up to 8m
• Liquid Temperature between -10°C to +105°C
• Ambient Temperature Up to 40°C.

Applications:

Prakash pumps make available a complete range of Horizontal Multistage Stainless Steel Pump solutions to facilitate all the applications, like industrial and domestic Agricultural and it aids you as a solution to everything you require in water solutions.

The applications covered includes:

• Domestic Water Supply: For House and garden, Institutes & Hospitals, Nurseries
• Agricultural: Vegetable Greenhouse watering, Fish farming and poultry raising etc.
• Industry and mining: Pressure Boosting, Equipment support, Pipeline Pressurization.
• For High-Rise buildings for Pipeline Pressurization.
• In Central air conditioner and Centralized heating circulation system
