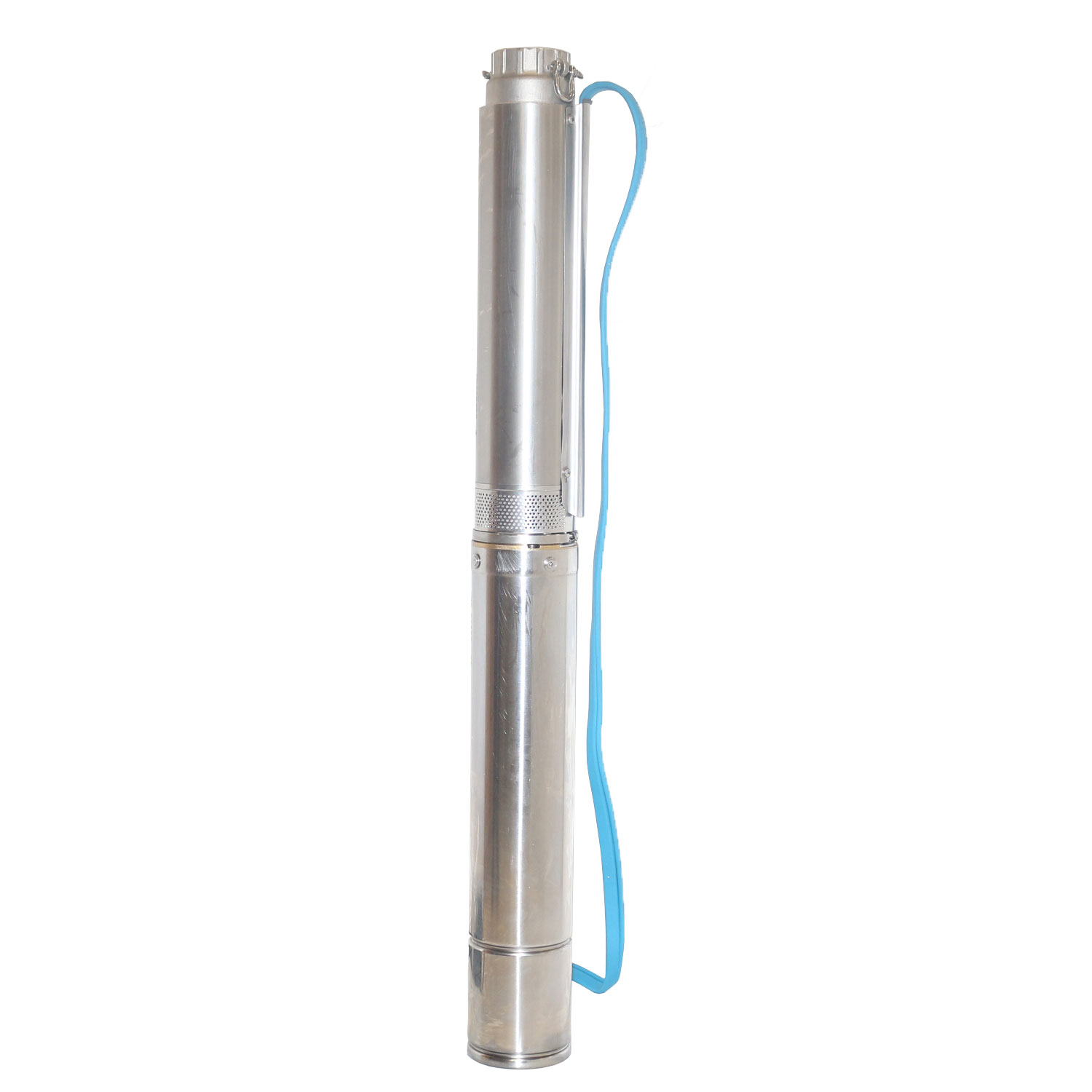

PRAKASH 2.0 HP SUB. MOTORPUMP SET – PMP-R2-1617

  Download Brochure

Prakash Pump manufactures and supplies technologically advanced Asia’s foremost and prominent Submersible Motor-Pump Set Single Phase, specially manufactured from corrosion resistant materials for long life impellers, diffuser, and Delivery Casing is S.S.AISI-304.

The pump sizes are designed according to NEMA standards with high quality shaft bearings that provides low friction and high wear resistance.

These pumps are specially designed for Irrigation in horticulture and agriculture and can be used for Ground water supply to waterworks, Ground water lowering , Pressure boosting, Water treatment ,Civil and industrial application respectively. Also importantly, it is used for firefighting application in every sector.

This Pump includes around 9 models with different dimensions, power and flow rate so that user can choose the pump model according to their requirements.

Submersible Motor-Pump Set Single Phase: Top Features

• Pump sizes available:Pump sizes for connecting to motor according to NEMA standards.
• Corrosion resistant materials: Manufactured from corrosion resistant materials for long life impellers, diffuser, and Delivery Casing is S.S.AISI-304.
• Independently Floating centrifugal impellers: The independently floating centrifugal impellers are present and they provide easy starting and long life, automatically adjusting to match pumping conditions for various application.
• High quality shaft bearings: It provides low friction and high wear resistance.
• Strong stainless steel drive shaft: It guarantees positive impeller drive and longer life.
• Standard 2 pole speed motor (2850rpm): It limits internal velocities for longer life.
• Certain impeller material selection guarantees optimal performance in sandy bores.
• Delivery Casing with built-in non return valve for stopping coming back water.

Specifications:

A] Technical Specifications:

• Head :102 Mtr
• Flow Rate :100 LPM
• Power: 1.5 KW / 2.0 HP
• Outlet: 1.25 Inch
• Power Supply Single phase 230V ±10%, 50Hz, Three phase 400V ±10%, 50Hz
• Sand quality into the water: 65g/m3

B] Operating range:

• Water temperature: up to 50°C.
• PH: 6.5 – 8.0

Applications:

Prakash pumps make available a complete range of Submersible Motor-Pump Set Single Phase solutions to facilitate all the applications, like domestic, industrial, and agricultural and it aids you as a solution to everything you require in water solutions.

The applications covered includes:

• Ground water supply to waterworks
• Irrigation in horticulture and agriculture
• Ground water lowering
• Pressure boosting
• Water treatment
• Civil and industrial application
